Factory Cat Mag-HD Heavy Duty
The Beast of Pre-Sweep, Floor Scrubbing.

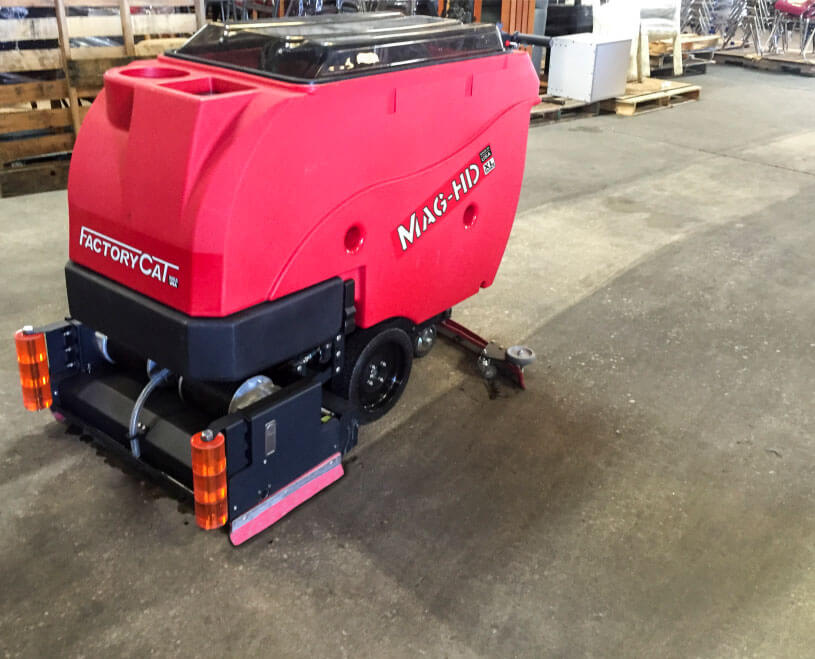

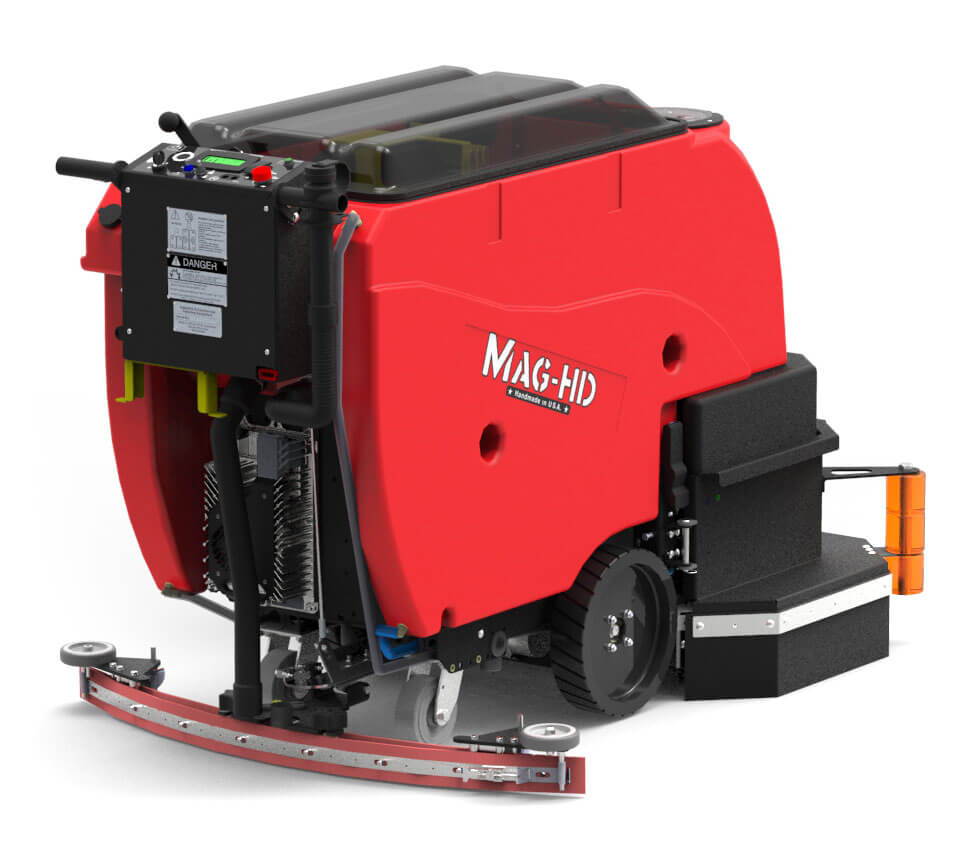

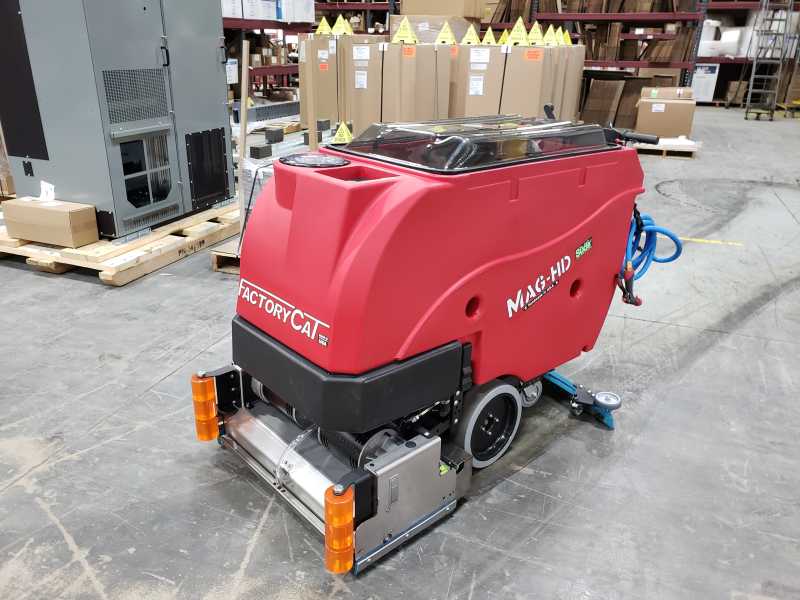

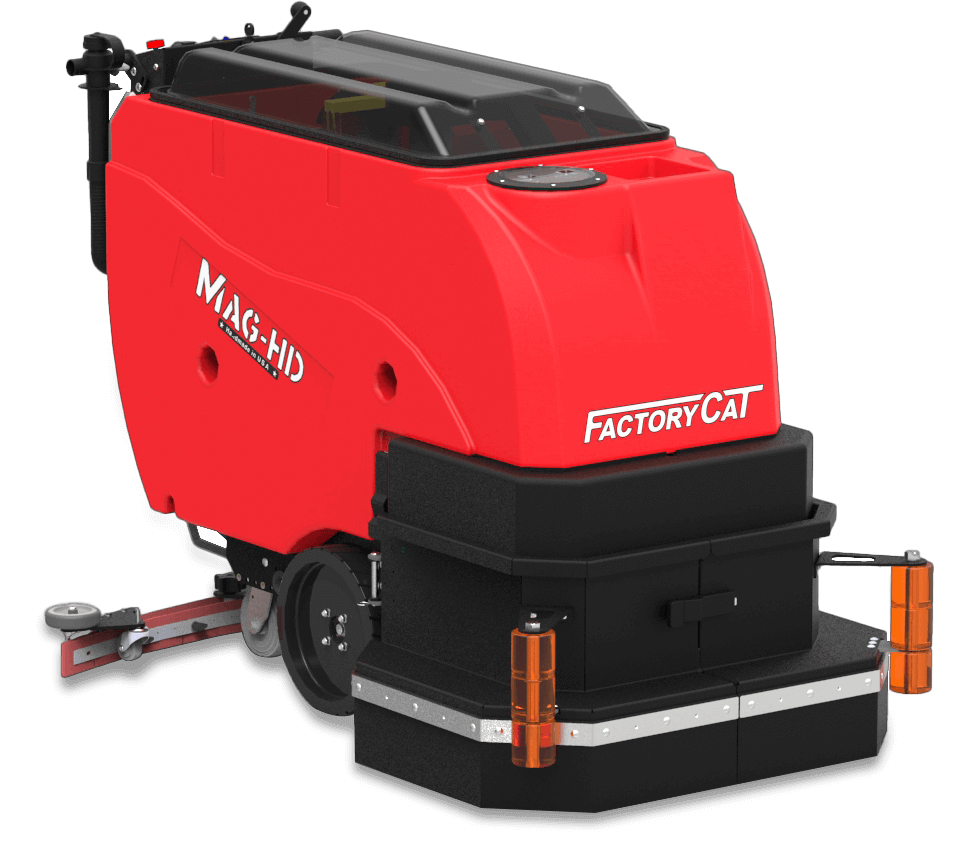

The Factory Cat MagHD is a Large powerful industrial floor scrubber dryer, designed to efficiently clean Large sized floor spaces. Its ergonomic design and robust construction make it ideal for engineering, manufacturing, and production facilities. It’s great for food and drinks facilities also for a slip-free clean finish. It comes with debris collector and optional onboard attachments.
Product Summary:
- Efficiently scrubs away dirt and cleans dust, cutting through the heaviest of grease and grime on your floors.
- Compact robust design for cleaning dirty floors, Even though its huge, the MagHD is easy to move around due to its design.
- Heavy Duty Durable Steel Construction for use in the most testing industrial environments.
“When the going gets tough, the tough get scrubbing! Join the Clean Team with Beta Solutions Ltd and our Factory Cat floor cleaning machines. Why work in dirty when you can work in clean?

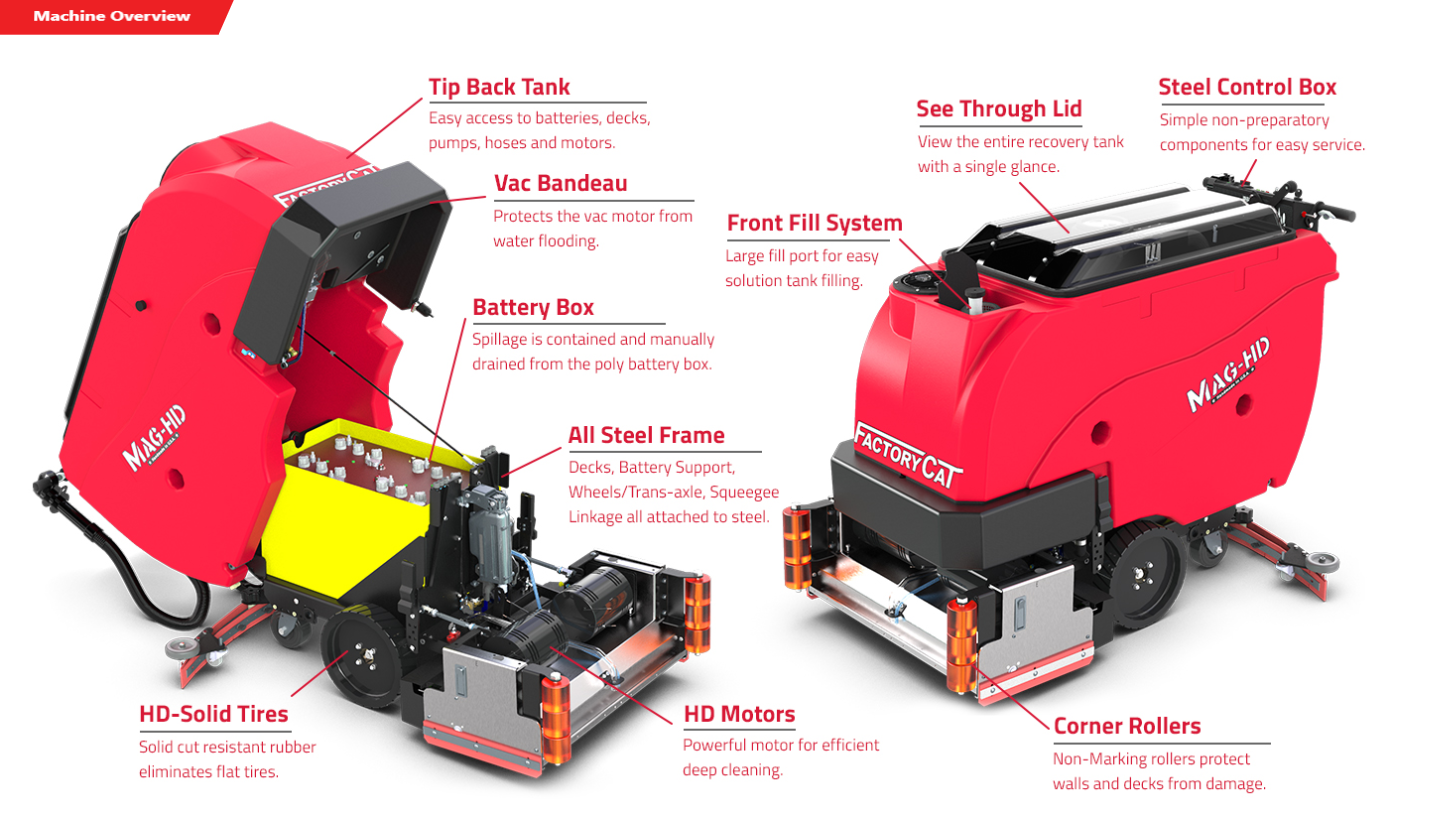

Key Features
Machine Control Panel
uses off-the-shelf toggle and marine duty switches and features universal icons which simplifies training.
Vacuum Muffler
allows machine to consistently achieve as low as 62 dB while thoroughly drying the floor.
Squeegee Adjustments made simple
with quick change squeegee latch allows toolless maintenance and 4-sided squeegee blade.
Front Fill System
features a retractable hose for easy filling on standard sink-faucets and a stainless screen for bucket filling.
Oversized Vacuum Screen Shut-Off
quickly arrests overfill issues to protect the Vacuum Motor.
High Performance motors and down pressure
provides an unmatched standard of cleaning.
Media click the images to enlarge
Technical Details
Body Construction / Dimensions
| Tank Material | Poly 3/8'' (9.5 mm) |
| Chassis Construction | 3/16'' Steel (4.8 mm) Powder Coated Steel |
| Front Wheels (Diameter × Width) | (2×) 12'' × 2.75'' ([2×] 30.5 × 7 cm) - Solid Black |
| Rear Casters (Diameter × Width) | (2×) 5'' × 2'' ([2×] 12.7 × 5.1 cm) - Non-Marking Grey |
| Size (L × W × H) | 55'' × 26'' × 40'' (139.7 × 66 × 101.6 cm) |
| Weight (w/o Batteries) | 441 - 481 lbs (200 - 218 kg) |
| Weight (w/ 315 ah Batteries) | 775 - 825 lbs (352 - 374 kg) |
Brush / Pad System
| Disk Dimensions | 30'' - (2×) 15'' Diameter (76.2 - [2×] 38.1 cm) |
| 34'' - (2×) 17'' Diameter (86.4 - [2×] 43.2 cm) | |
| Disk Motor | (2×) 1.0 hp ([2×] 746 watts) |
| Disk Brush Speed | 350 rpm |
| Cylindrical Dimensions | 29'' - (2×) 6'' × 27'' (73.7 - [2×] 15.2 × 68.6 cm) |
| 33'' - (2×) 6'' × 31'' (83.8 - [2×] 15.2 × 78.7 cm) | |
| Cylindrical Motor | (2×) 1.0 hp / 350 rpm ([2×] 746 watts) |
| Cylindrical Brush Speed | 750 rpm |
| Brush Pressure Settings | (5) with Auto Adjust |
| Brush Down Pressure | Up to 185 lbs (84 kg) / 500 lbs (227 kg) Actuator Rating |
Power System
| System Voltage | 24 VDC |
| Standard Battery | 315 ah WET |
| Optional Battery | 360 ah WET / 335 ah AGM* |
| Run Time | Up to 5.0 Hours** |
| Charger | 120VAC / 60 Hz Input - 24VDC / 30 amp Output |
Drive System
| Power | 0.75hp - All Gear / Sealed (559 watts) |
| Forward Speed | 0 - 290 ft/min / 0 - 3.3 mph (0 - 88 m/min / 0 - 5 km/h) |
| Scrubbing Speed | 0 - 229 ft/min / 0 - 2.6 mph (0 - 70 m/min / 0 - 4 km/h) |
| Reverse Speed | 0 - 202 ft/min / 0 - 2.3 mph (0 - 62 m/min / 0 - 4 km/h) |
Solution / Recovery Systems
| XL Tank Solution Capacity | 35 Gallons (132.5 liters) - w/ Graduated Site Tube |
| Solution Flow / Filter | 0 - 1.0 GPM / Stainless Inline (0 - 4 LPM) |
| XL Tank Recovery Capacity | 37 Gallons (140.1 liters) - 1.5'' diameter Drain Hose |
| Optional Small Tank Capacity | 30 Gal (113.6 liters) Solution / 32 Gal (121.1 liters) Recovery |
| Demisting Chamber | 1.25 Gallons (4.7 liters) |
| Drain Saver | 30 cubic inches (492 cubic cm) |
| Vacuum Power | 0.8 hp / 3 Stage (640 watts) |
| Vacuum Specs (Water Lift / Airflow) | 68'' / 72 cfm (173 cm / 2 cm/m) |
| Squeegee | Curved w/ 4-sided Rear Blade & Quick Change Latch |
| All Sizes - 42'' (106.7 cm) | |
| Optional - 33'', 36'', & 39'' (83.8, 91.4, 99.1 cm) |
General
| Cleaning Width | 30'' & 34'' - Disk (76.2 & 86.4 cm) |
| 29'' & 33'' - Cylindrical (73.7, 83.8 cm) | |
| Productivity - Theoretical | Up to 31,915 sqft (2,965 sqm)*** |
| ***Productivity is based off of ISSA 2010 Cleaning Times | |
| Productivity - Practical | Up to 14,851 sqft (1,380 sqm)*** |
| ***Productivity is based off of ISSA 2010 Cleaning Times |
