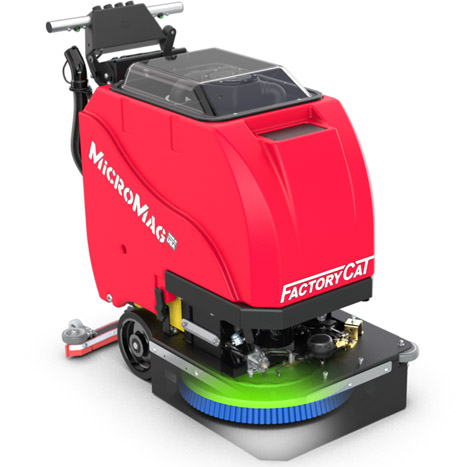

Factory Cat MicroMag Heavy Duty
Small But Powerful Floor Scrubbing
The Factory Cat Micro Mag is a compact and powerful industrial floor scrubber dryer, designed to efficiently clean small to medium-sized spaces. Its ergonomic design and robust construction make it ideal for engineering, manufacturing, and production facilities. It’s great for food and drinks facilities also for a slip-free clean finish.
Product Summary:
- Efficiently scrubs away dirt and cleans dust, cutting through the heaviest of grease and grime on your floors.
- Compact robust design for cleaning in and around tight spaces, the MicroMag is easy to move around.
- Heavy Duty Durable Steel Construction for use in the most testing industrial environments.
“When the going gets tough, the tough get scrubbing! Join the Clean Team with Beta Solutions Ltd and our Factory Cat floor cleaning machines. Because why work in dirty when you can work in clean?
Key Features
Machine Control Panel
uses off-the-shelf toggle and marine duty switches and features universal icons which simplifies training.
Vacuum Muffler
allows machine to consistently achieve as low as 64 dBA while thoroughly drying the floor.
Squeegee Adjustments made simple
with simple wing-nuts allows for toolless maintenance of the squeegee blade.
Front Fill System
features a retractable hose for easy filling on standard sink faucets and a stainless screen for bucket filling.
Oversized Vacuum Screen Shut-Off
quickly arrests overfill issues to protect the Vacuum Motor.
High Performance motors and down pressure
provides an unmatched standard of cleaning.
Media click the images to enlarge
Technical Details
BODY CONSTRUCTION / DIMENSIONS
| Tank Material: | Poly 5/16'' (7.9 mm) |
| Chassis Construction: | 1/8'' Steel (3.2 mm) Powder Coated Steel |
| Front Casters (Diameter × Width): | (2×) 2.5'' × 1.38'' ([2×] 6.4 × 3.5 cm) - Non-Marking Grey |
| Rear Wheels (Diameter × Width): | (2×) 8'' × 2'' ([2×] 20.3 × 5.1 cm) - Solid Black |
| Size (L × W × H): | 35'' × 18'' × 38'' (88.9 × 45.7 × 96.5 cm) |
| Weight (w/o Batteries): | 110 - 160 lbs (49.9 - 72.6 kg) |
| Weight (w/ 85 ah Batteries): | 290 - 340 lbs (131.5 - 154.2 kg) |
BRUSH / PAD SYSTEM
| Disk Dimensions: | 17'' - (1×) 17'' Diameter Brush (43.2 - [1×] 43.2 cm) |
| 20'' - (1×) 20'' Diameter Brushes (50.8 - [1×] 50.8 cm) | |
| Disk Motor: | (1×) 0.75 hp / 200 rpm (559 watts) |
| Disk Brush Speed: | 200 rpm |
| Optional Disk Motor: | (1×) 1.0 hp / 200 rpm (746 watts) |
| Brush Down Pressure: | Up to 100 lbs (45.4 kg) / 500 lbs (226.8 kg) Actuator Rating |
POWER SYSTEM
| System Voltage: | 24 VDC |
| Standard Battery: | 85 ah WET |
| Optional Battery: | 130 ah WET / 115 ah AGM |
| Run Time: | Up to 2.5 Hours |
| Charger: | 120VAC / 60 Hz Input - 24VDC / 8 amp Output |
DRIVE SYSTEM
| Power: | 0.75hp - All Gear / Sealed (559 watts) & Pad Assist |
| Forward Speed: | 0 - 230 ft/min / 2.6 mph (0 - 70 m/min / 4 km/h) |
| Scrubbing Speed: | 0 - 184 ft/min / 2 mph (0 - 56 m/min / 3 km/h) |
| Reverse Speed: | 0 - 130 ft/min / 1.5 mph (0 - 40 m/min / 2 km/h) |
SOLUTION / RECOVERY SYSTEMS
| Solution Tank Capacity: | 10 Gallons (37.9 liters) - w/ Graduated Site Tube |
| Solution Flow / Filter: | 0 - 0.5 GPM / Stainless Inline (0 - 2 LPM) |
| Recovery Tank Capacity: | 10 Gallons (37.9 liters) - 1.5'' diameter Drain Hose |
| Demisting Chamber: | 1.25 Gallons (4.7 liters) |
| Drain Saver: | 30 cubic inches (492 cubic cm) |
| Vacuum Power: | 0.8 hp / 3 Stage (640 watts) |
| Vacuum Specs (Water Lift / Airflow): | 70'' / 70 cfm (177.8 cm / 2 cm/m) |
| Squeegee: | Curved w/ 2-sided Rear Blade |
| 17D - 30'' (76.2 cm) | |
| 20D - 34''(86.36 cm) | |
| Optional - 26'' (66.04 cm) |
GENERAL
| Cleaning Width: | 17'' & 20'' - Disk (43 & 50.1 cm) |
| Sound Levels: | 64 dBA*** |
| Productivity - Theoretical: | Up to 15,748 sqft (1,463 sqm) |
| Productivity - Practical: | Up to 7,308 sqft |
