Factory Cat MicroMini Heavy Duty
Small But Powerful Floor Scrubbing
The Factory Cat MicroMini is a compact and powerful industrial floor scrubber dryer, designed to efficiently clean small to medium-sized spaces. Its ergonomic design and robust construction make it ideal for engineering, manufacturing, and production facilities. It’s great for food and drinks facilities also for a slip-free clean finish.
Product Summary:
- Efficiently scrubs away dirt and cleans dust, cutting through the heaviest of grease and grime on your floors.
- Compact robust design for cleaning in and around tight spaces, the MicroMini is easy to move around.
- Heavy Duty Durable Steel Construction for use in the most testing industrial environments.
“When the going gets tough, the tough get scrubbing! Join the Clean Team with Beta Solutions Ltd and our Factory Cat floor cleaning machines. Why work in dirty when you can work in clean?
For questions call 01282 416139
Your data is protected view our Privacy Policy
Key Features
Machine Control Panel
uses off-the-shelf toggle and marine duty switches and features universal icons which simplifies training.
Vacuum Muffler
allows machine to consistently achieve as low as 65 dBA while thoroughly drying the floor.
Squeegee Adjustments made simple
with simple wing-nuts allows for toolless maintenance of the squeegee blade.
Front Fill System
features a retractable hose for easy filling on standard sink-faucets and a stainless screen for bucket filling.
Oversized Vacuum Screen Shut-Off
quickly arrests overfill issues to protect the Vacuum Motor.
High Performance motors and down pressure
provides an unmatched standard of cleaning.

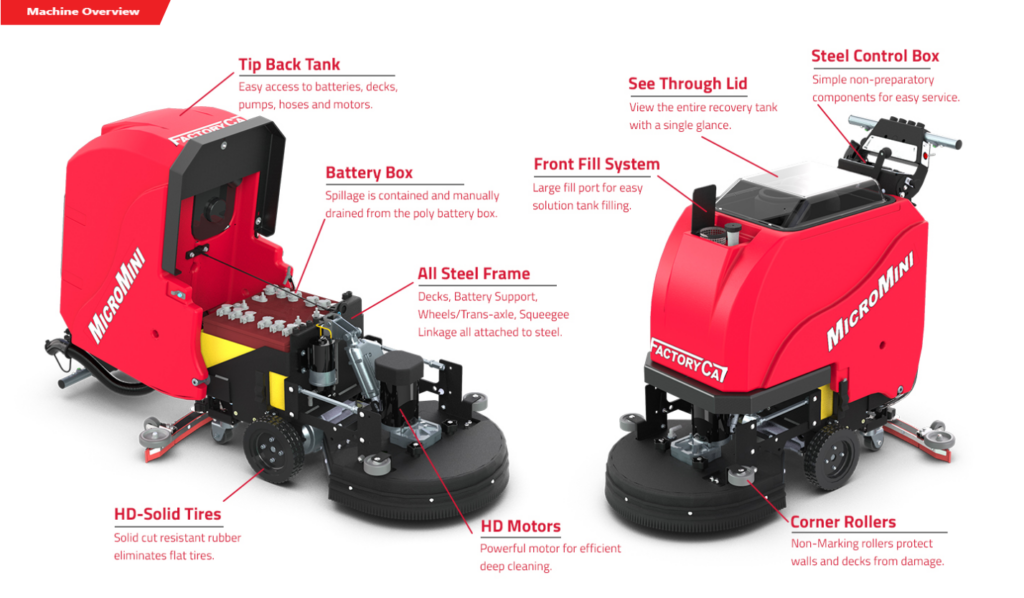

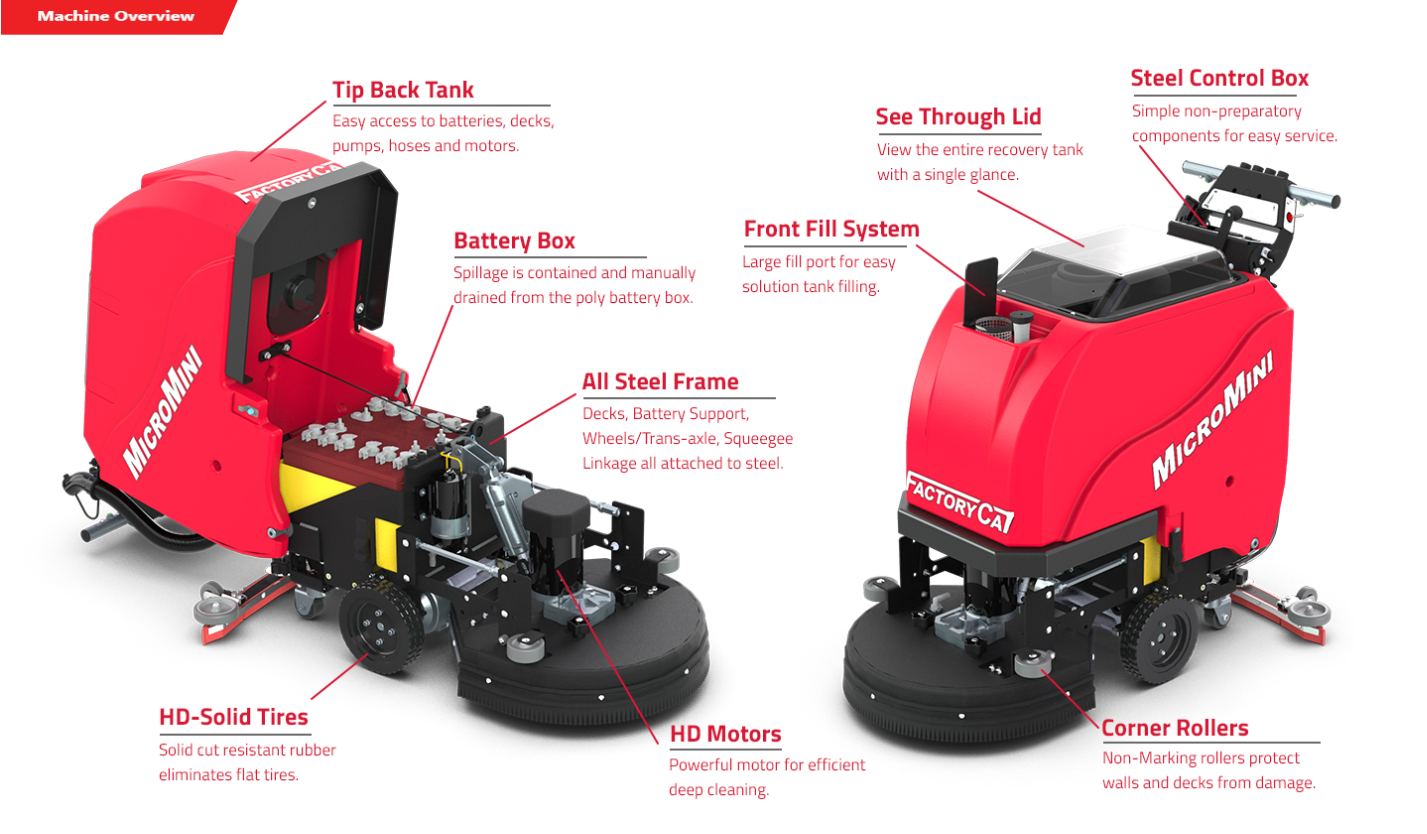

Media click the images to enlarge
Technical Details
BODY CONSTRUCTION / DIMENSIONS
| Tank Material: | Poly 5/16'' (7.9 mm) |
| Chassis Construction: | 1/8'' Steel (3.2 mm) Powder Coated Steel |
| Front Wheels (Diameter × Width): | (2×) 8'' × 2'' ([2×] 20.3 × 5.1 cm) - Solid Black |
| Rear Casters (Diameter × Width): | (2×) 2.5'' × 1.38'' ([2×] 6.4 × 3.5 cm) - Non-Marking Grey |
| Size (L × W × H): | 42'' × 21'' × 39'' (106.7 × 53.3 × 99.1 cm) |
| Weight (w/o Batteries): | 215 - 315 lbs (97.5 - 142.9 kg) |
| Weight (w/ 130 ah Batteries): | 380 - 480 lbs (172.4 - 217.7 kg) |
BRUSH / PAD SYSTEM
| Disk Dimensions: Includes Shroud for Wall Protection | |
| 17'' - (1×) 17'' Ø (43.2 - [1×] 43.2 cm) | |
| 20'' - (1×) 20'' Ø (50.8 - [1×] 50.8 cm) | |
| 26'' - (2×) 13'' Ø (66.1 - [2×] 33.1 cm) | |
| Disk Motor: | 0.75 hp / 200 rpm ([1×] 559 watts) |
| Disk Brush Speed: | 200 rpm |
| Brush Down Pressure: | Up to 100 lbs (45.4 kg) / 500 lbs (226.8 kg) Actuator Rating |
POWER SYSTEM
| System Voltage: | 24 VDC |
| Standard Battery: | 130 ah WET |
| Optional Battery: | 150 ah WET / 115 ah AGM |
| Run Time: *Run times are based on continuous scrubbing run times. | Up to 3.5 Hours* |
| Charger: | 120VAC / 60 Hz Input - 24VDC / 12 amp Output |
DRIVE SYSTEM:
| Power | 0.75hp - All Gear / Sealed (559 watts) & Pad Assist |
| Forward Speed: | 0 - 230 ft/min / 2.6 mph (0 - 70 m/min / 4 km/h) |
| Scrubbing Speed: | 0 - 184 ft/min / 2 mph (0 - 56 m/min / 3 km/h) |
| Reverse Speed: | 0 - 130 ft/min / 1.5 mph (0 - 40 m/min / 2 km/h) |
SOLUTION / RECOVERY SYSTEMS:
| Solution Tank Capacity: | 10 Gallons (37.9 liters) - w/ Graduated Site Tube |
| Solution Flow / Filter: | 0 - 0.5 GPM / Stainless Inline (0 - 2 LPM) |
| Recovery Tank Capacity: | 10 Gallons (37.9 liters) - 1.5'' diameter Drain Hose |
| Demisting Chamber: | 1.25 Gallons (4.7 liters) |
| Drain Saver: | 30 cubic inches (491.6 cubic cm) |
| Vacuum Power: | 0.8 hp / 3 Stage (640 watts) |
| Vacuum Specs (Water Lift / Airflow): | 70'' / 70 cfm (177.8 cm / 2 cm/m) |
| Squeegee: | Curved w/ 2-sided Rear Blade |
| 17D - 30'' (76.2 cm) | |
| 20D & 26D - 34''(86.4 cm) | |
| Optional - 26'' & 34'' (66 cm & 86.4 cm) |
GENERAL:
| Cleaning Width: | 17'', 20'', 26'' - Disk (43 & 50.1, 66.1 cm) |
| Sound Levels: **Decibel levels for Disk per ISO 11201 as recommended by the American Association of Cleaning Equipment Manufacturers & OSHA | 65 dBA** |
| Productivity - Theoretical: ***Productivity is based off of ISSA 2010 Cleaning Times | Up to 15,748 sqft (1,463 sqm)*** |
| Productivity - Practical: ***Productivity is based off of ISSA 2010 Cleaning Times | Up to 7,308 sqft (679 sqm)*** |
